Service Area

HPRTK is a classical COOP business model where most of our CORS infrastructure is owned by local franchisees who profit from all users in their geographical area(s). For areas not shown in green, open franchises may be available. Contact us at info@HPRTK.net to start your future as an HPRTK CORS franchisee.

Subscribers may freely roam the entire North American Coverage on a single NTRIP login or iPPP Authorization.

The HPRTK Network consists of 1300+ IGS calibrated Continually Operating Reference Stations (CORS) streaming live data to our central processing servers which analyze and model hundreds of error sources to produce the most accurate GPS/GNSS corrections available.

DGPS and iPPP Coverage Area

DGPS and iPPP Coverage Area

The newest technology in GPS positioning breaks the limitation of UHF radios range and bidirectional cellular phone connectivity allowing for wide area transmission to hundreds of thousands of users.

iPPP Horizontal Accuracy of: 2 cm RMS, Vertical Accuracy of: 10 cm RMS

iPPP Convergence: < 90 seconds

DGPS Coverage currently covers 100% of the USA and 20% of Canada

GREEN = Available

YELLOW = Installation planned or testing in progress

Grey = Coming soon

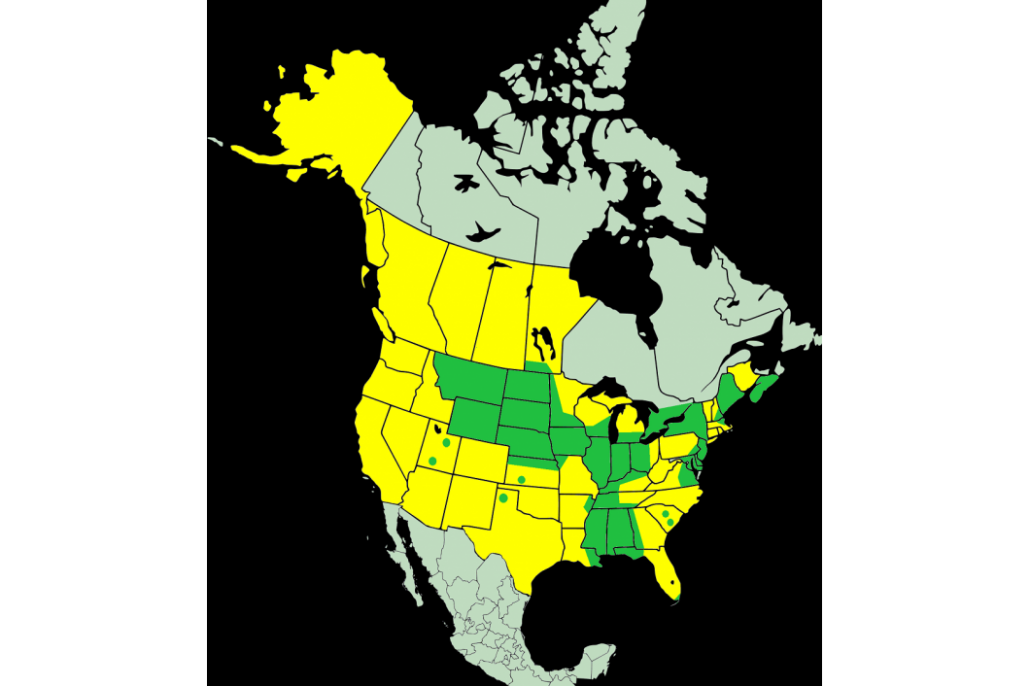

Network RTK Coverage Area

Network RTK Coverage Area

Utilizing the ever-growing and improving Mobile Phone data networks available in North America our true Network RTK corrections consume less than 2 GB per month with heavy usage. For areas outside cellular data coverage, options include: 1. purchase an electronic “Bridge for RTK” which bridges traditional UHF radios to the Cellular data network, or 2. Use our dual technology direct IP modem which runs on both GSM and CDMA simultaneously combining the coverage of two major carriers such as AT&T (GSM) and Verizon (CDMA) for maximum uptime.

Horizontal Accuracy of: 1 cm RMS, Vertical Accuracy of: 4 cm RMS

GREEN = Available

YELLOW = Installation planned or testing in progress

Grey = Coming soon
